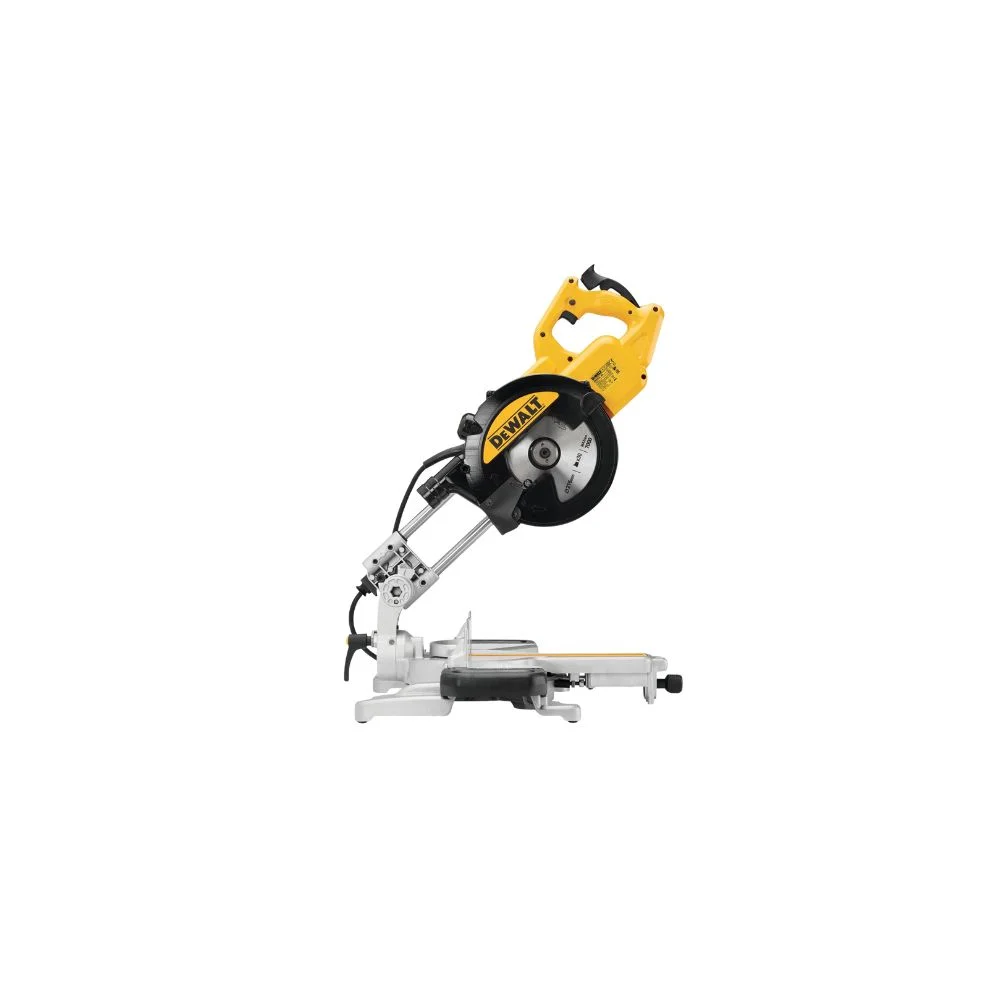

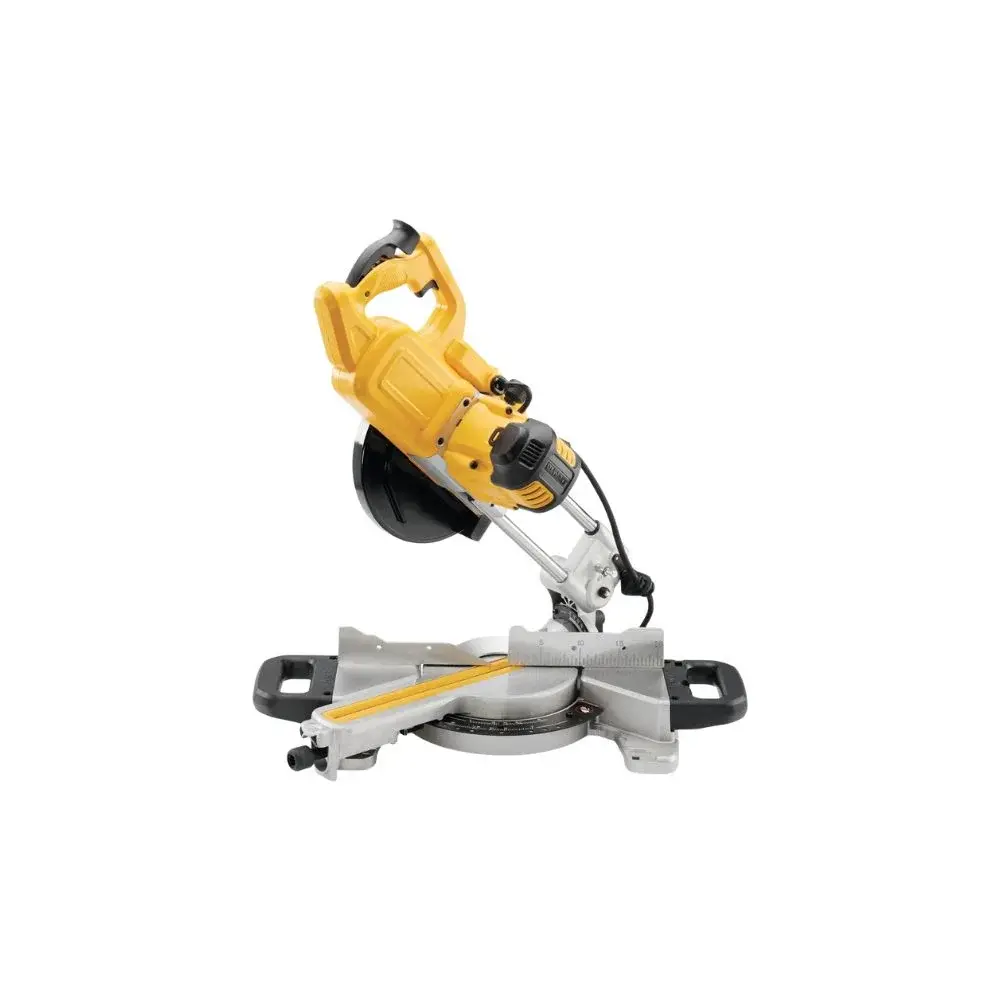

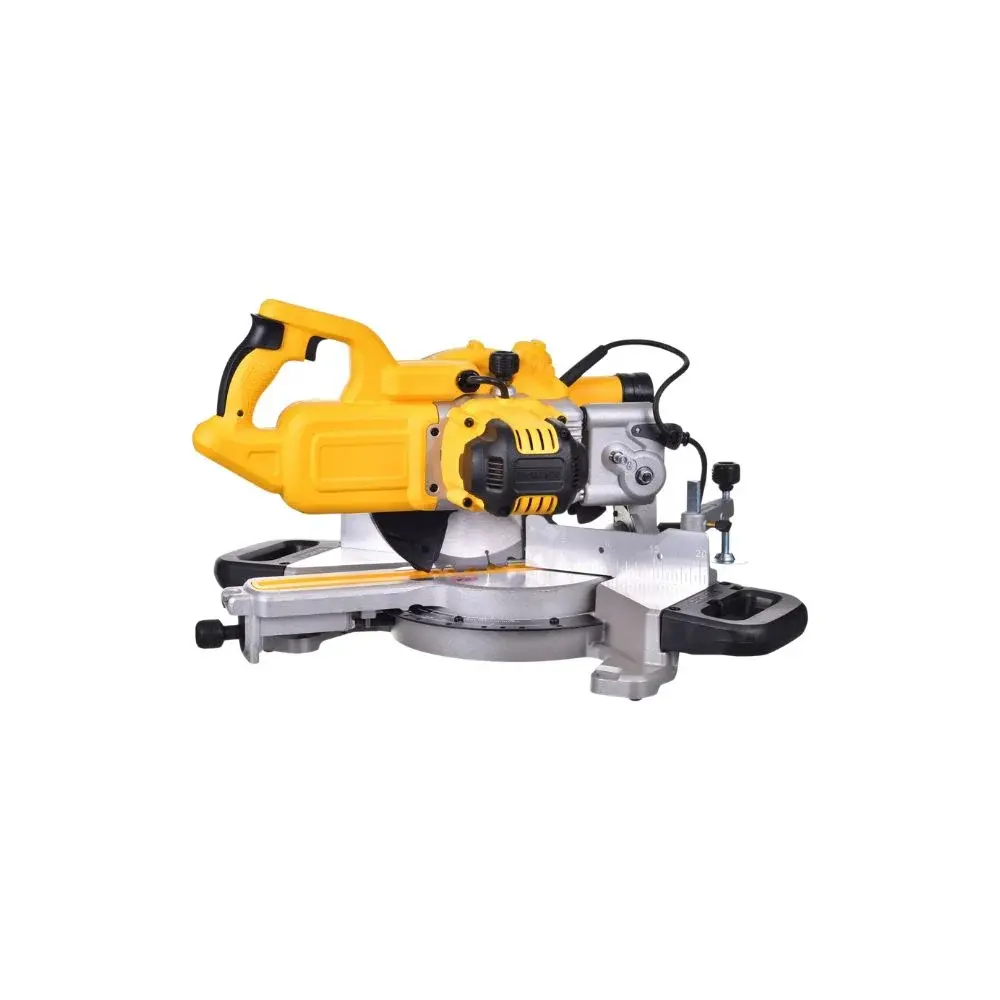

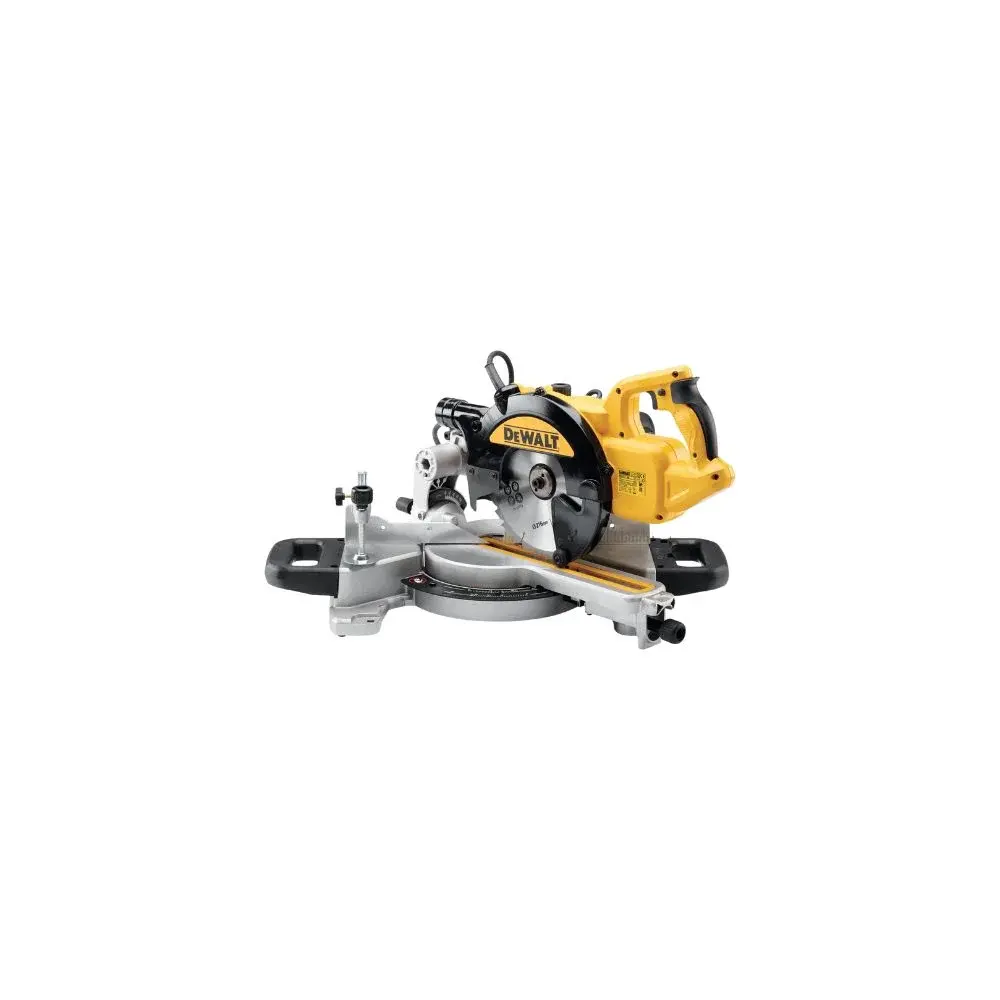

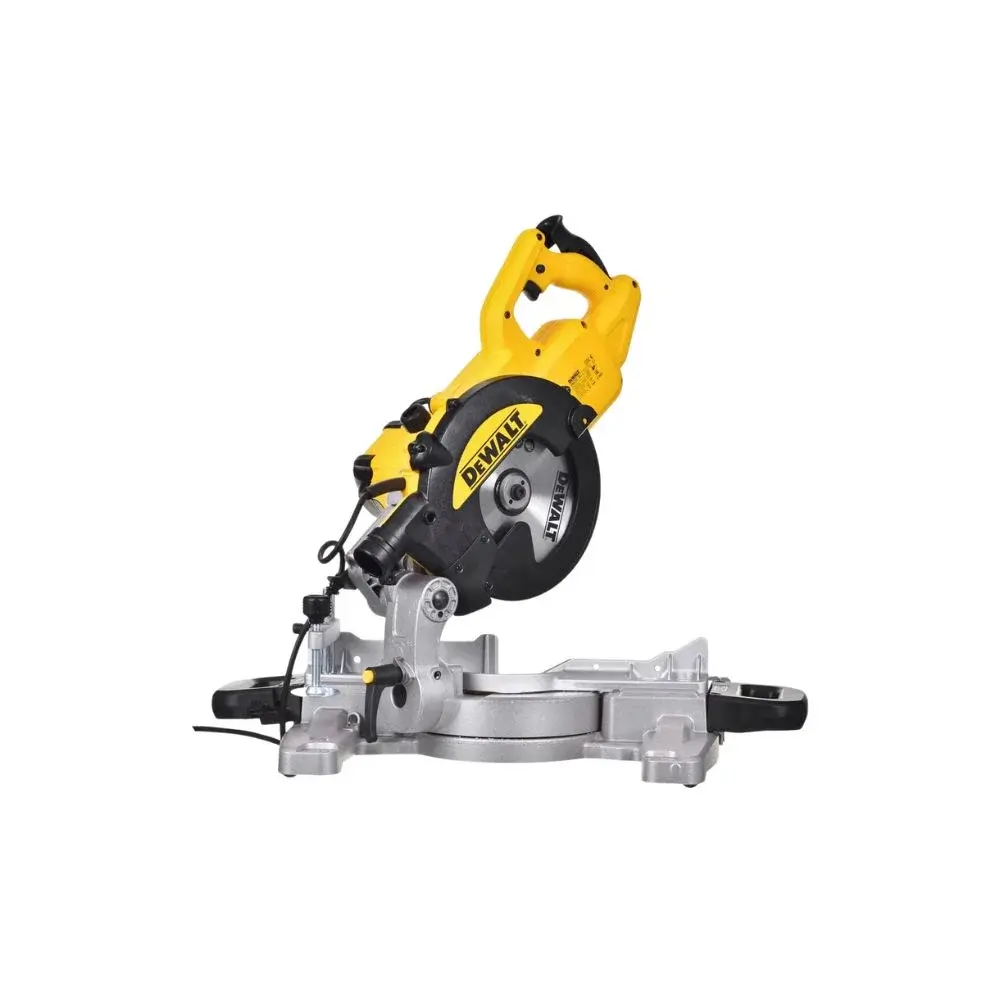

DeWALT DWS773 216mm 1300W Mitre Saw

DeWALT DWS773 216mm Mitre Saw – 1300W

The DeWALT DWS773 is a compact and highly accurate 216mm mitre saw, built for precision cross-cutting in wood, laminates, MDF, and plastics. With a 1300W motor and XPS shadow line cut system, it delivers clean, reliable cuts with excellent visibility — ideal for fitters, joiners, and interior finish work.

The integrated XPS LED system casts a precise shadow where the blade will cut, eliminating alignment guesswork. Despite its compact size, the DWS773 offers robust capacity with smooth slide action, adjustable mitres up to 48°, and a stable base for consistent performance on site or in the workshop.

Technical Features:

• Motor power: 1300W

• Blade diameter: 216 mm

• Bore size: 30 mm

• No-load speed: 4,500 rpm

• Max cross-cut capacity: 250 mm x 62 mm (at 90°)

• Bevel capacity: 48° (left only)

• Mitre range: 50° left / 50° right

• Cutting system: XPS shadow line for accurate blade tracking

• Compact, lightweight design with integrated carry handles

• Dust extraction port compatible with DeWALT vacuums

• Weight: Approx. 12 kg

Package Contents:

• 1 × DWS773 216mm Mitre Saw

Compatibility Notes:

Compatible with DeWALT mitre saw stands and standard 216 mm blades (30 mm bore). Ideal for interior carpentry, flooring, skirting, and second-fix jobs where compact size and cut accuracy are key.
