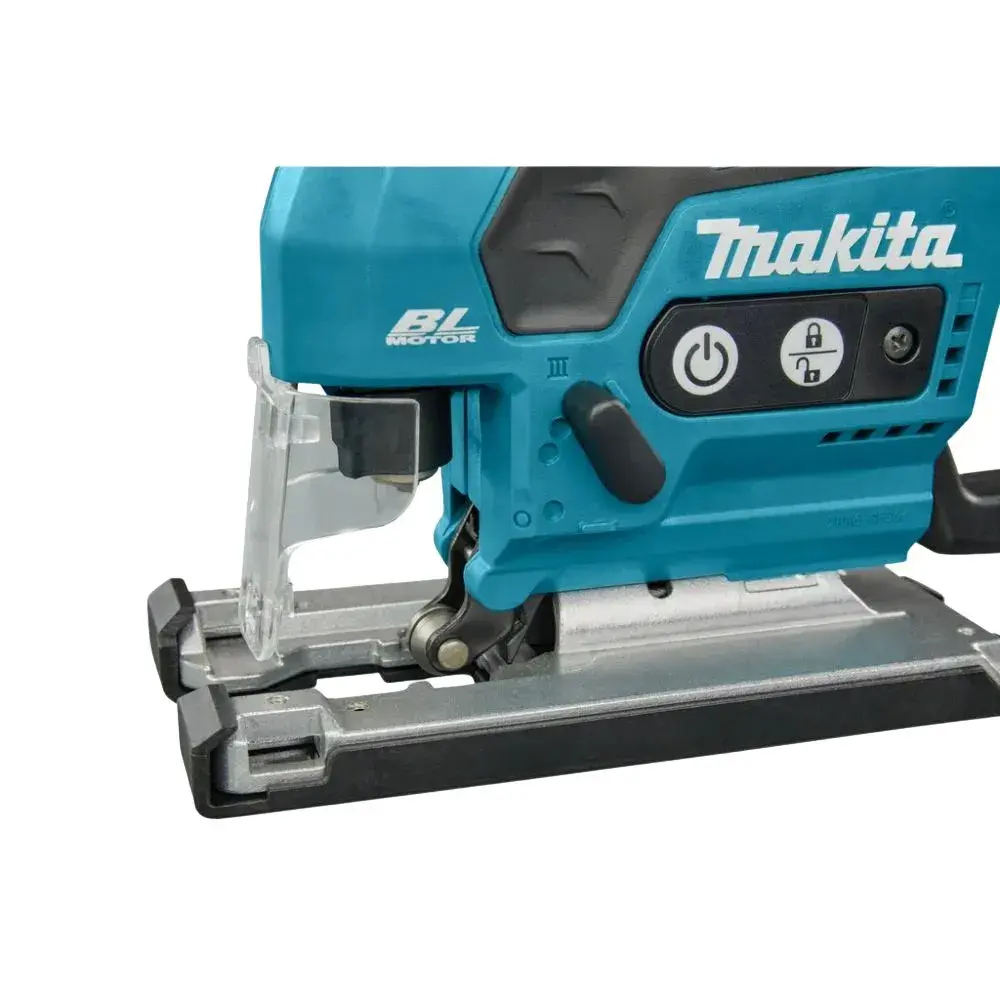

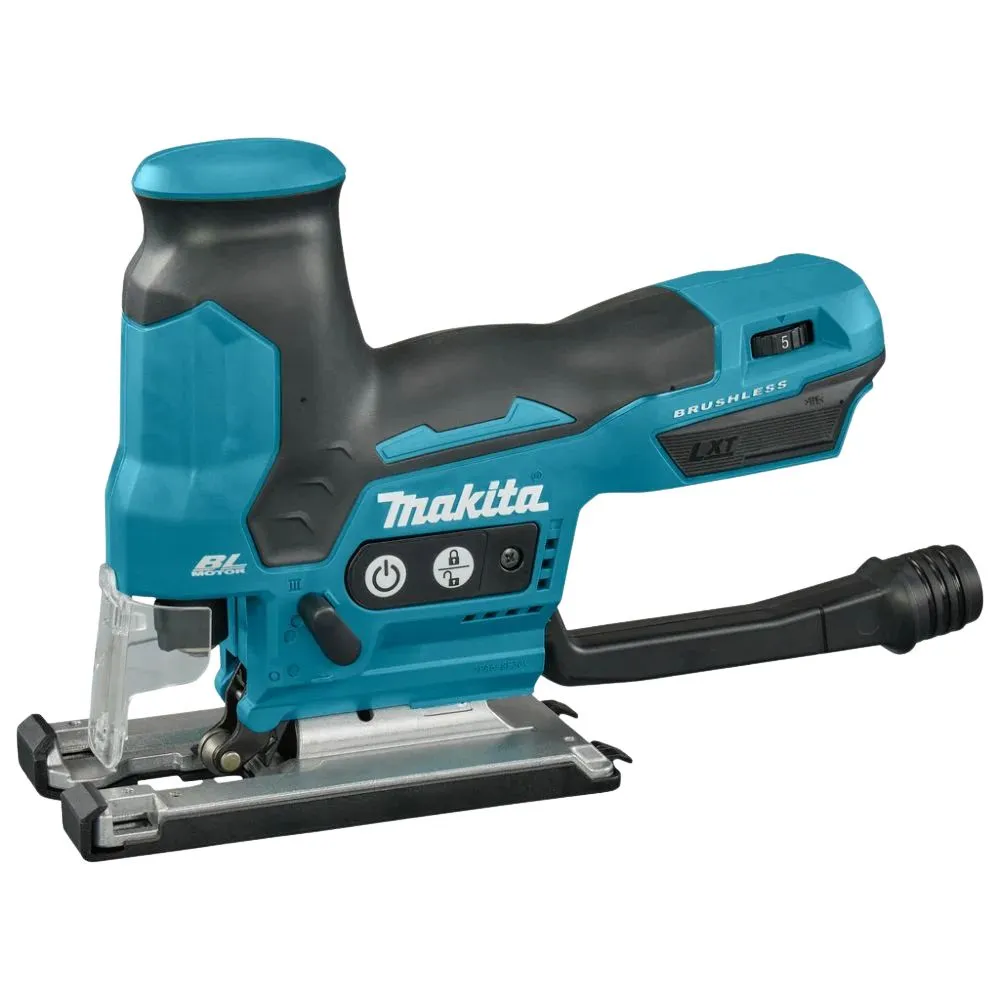

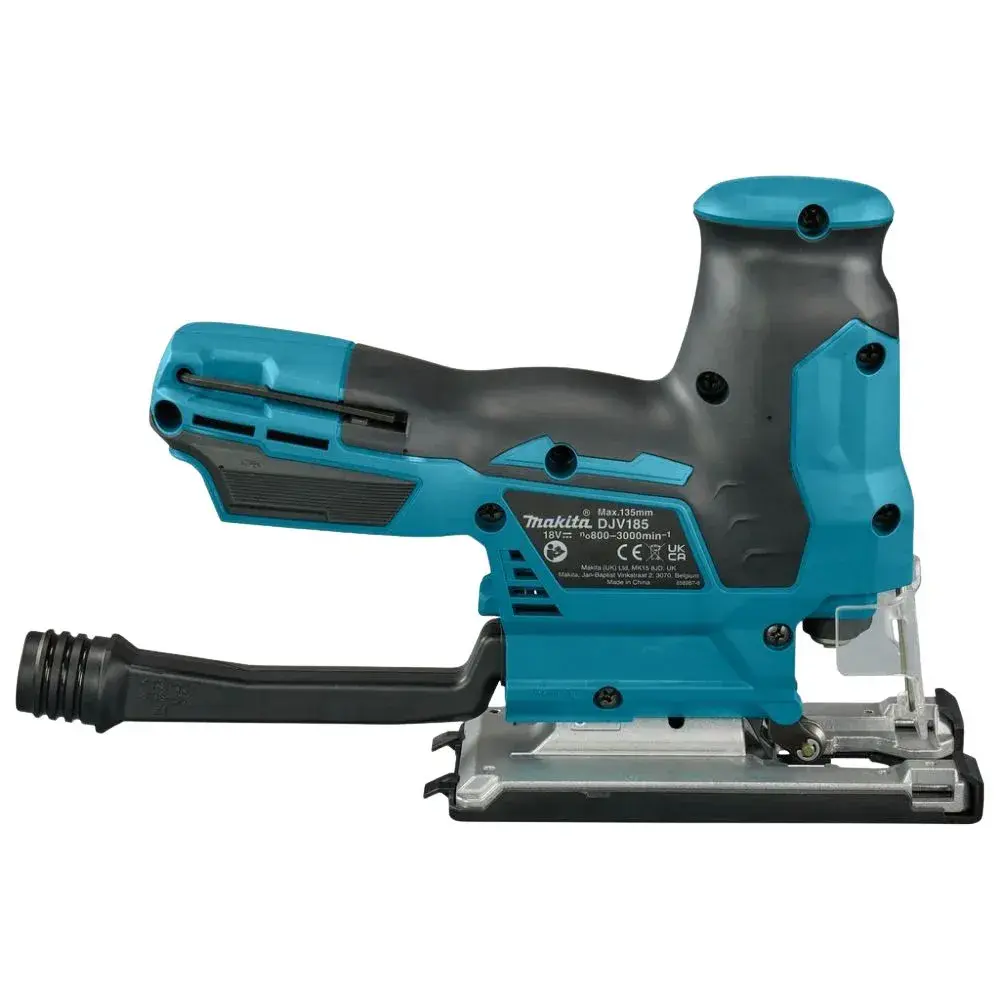

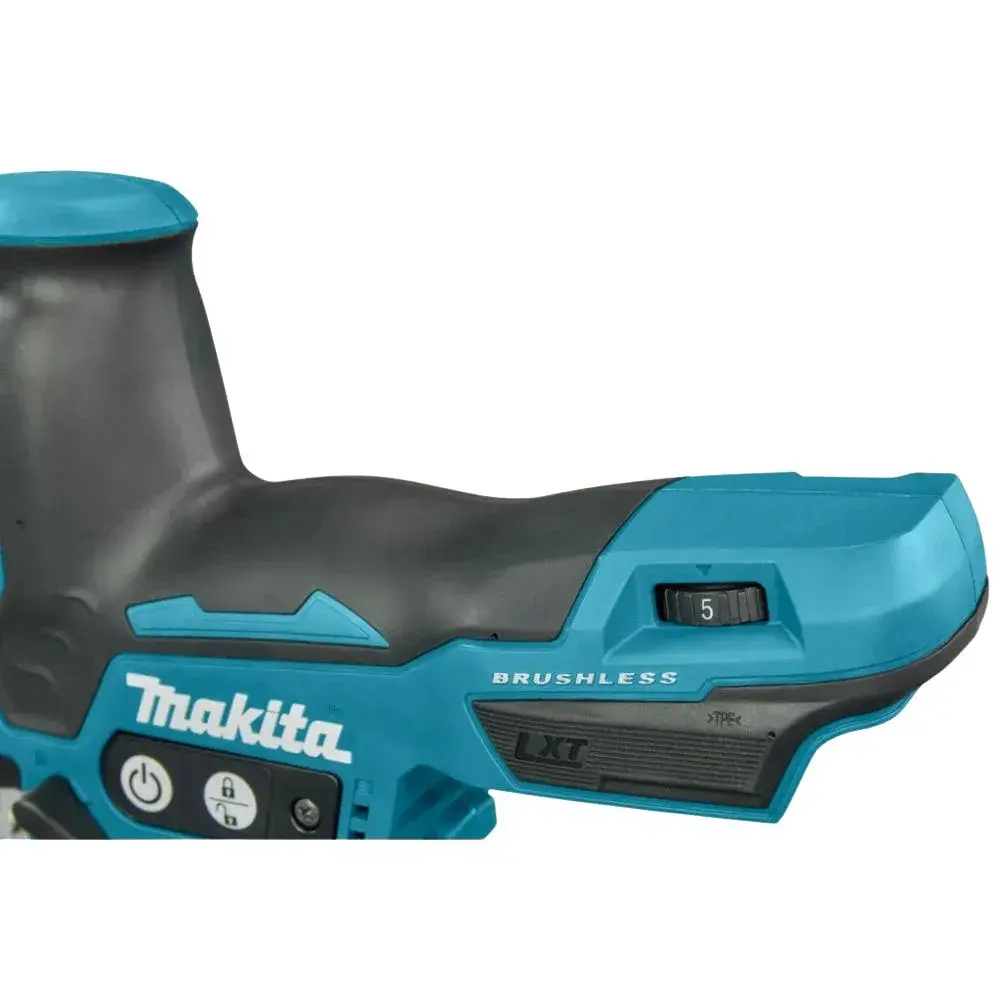

Makita DJV185Z 18V LXT Brushless Cordless Jigsaw – Body Only

Compact barrel-grip jigsaw for accurate, controlled cutting

Makita DJV185Z is an 18V LXT cordless brushless jigsaw designed for professional woodworking, installation and general cutting work. Its compact barrel-grip design gives you close control over the cut, while the variable-speed dial and adjustable orbital action help you adapt performance to different materials and applications.

Key Benefits

Brushless motor for efficient cutting: Makita’s brushless motor delivers strong cutting performance while using battery power efficiently. It’s a practical choice for regular site work and workshop jobs where cordless freedom matters.

Barrel-grip design: The compact body-style handle lets you hold the tool close to the workpiece for precise guidance, particularly when following curves, cutting shapes or working in tighter spaces.

Variable speed control: Adjust the speed from 800 to 3,000 strokes per minute to suit the material and the finish required. Take a more controlled approach on delicate cuts or increase the speed when the job calls for faster progress.

Four cutting settings: Choose from three orbital-action settings or straight cutting. Orbital action helps speed up cuts in suitable materials, while straight action is useful when prioritising a cleaner, more controlled cut.

Tool-free blade changes: The blade clamp allows quick changes without a separate tool, helping you get back to work when switching between cutting applications.

Soft no-load function: The blade runs more gently before it engages with the workpiece, helping reduce vibration and make it easier to line up the cut.

LED work light and dust management: The integrated LED illuminates the cutting area, while the blower helps keep the cut line visible. A dust nozzle can be fitted to connect a compatible dust extractor.

Designed for demanding site conditions: Makita’s XPT protection technology is engineered to improve resistance to dust and water, helping protect the tool during everyday use.

Technical Specifications

• Brand: Makita

• Model: DJV185Z

• Tool type: Cordless jigsaw

• Battery platform: 18V LXT Li-ion

• Motor: Brushless

• No-load stroke rate: 800–3,000 strokes per minute

• Stroke length: 23 mm

• Maximum cutting capacity in wood: 135 mm

• Maximum cutting capacity in mild steel: 10 mm

• Maximum cutting capacity in aluminium: 20 mm

• Bevel cutting range: 0°–45°

• Orbital action: 3 settings plus straight cutting

• Blade change: Tool-free

• Work light: Integrated LED

• Dimensions (L × W × H): 259 × 77 × 183 mm

• Weight: Approximately 1.7 kg bare tool; around 2.0–2.3 kg with battery, depending on battery fitted

Package Contents

• 1 × Makita DJV185Z 18V LXT brushless cordless jigsaw

• 1 × Jigsaw blade

• 1 × Dust nozzle

• 1 × Cover plate

• 1 × Dust cover

• 1 × Hex wrench

Battery, charger and carrying case are not included.

Battery Compatibility

The DJV185Z belongs to Makita’s 18V LXT battery platform and works with compatible LXT batteries. If you already use Makita 18V LXT tools, you can share compatible batteries and chargers across your setup, making this body-only version a practical way to add a brushless jigsaw without buying another battery kit.
