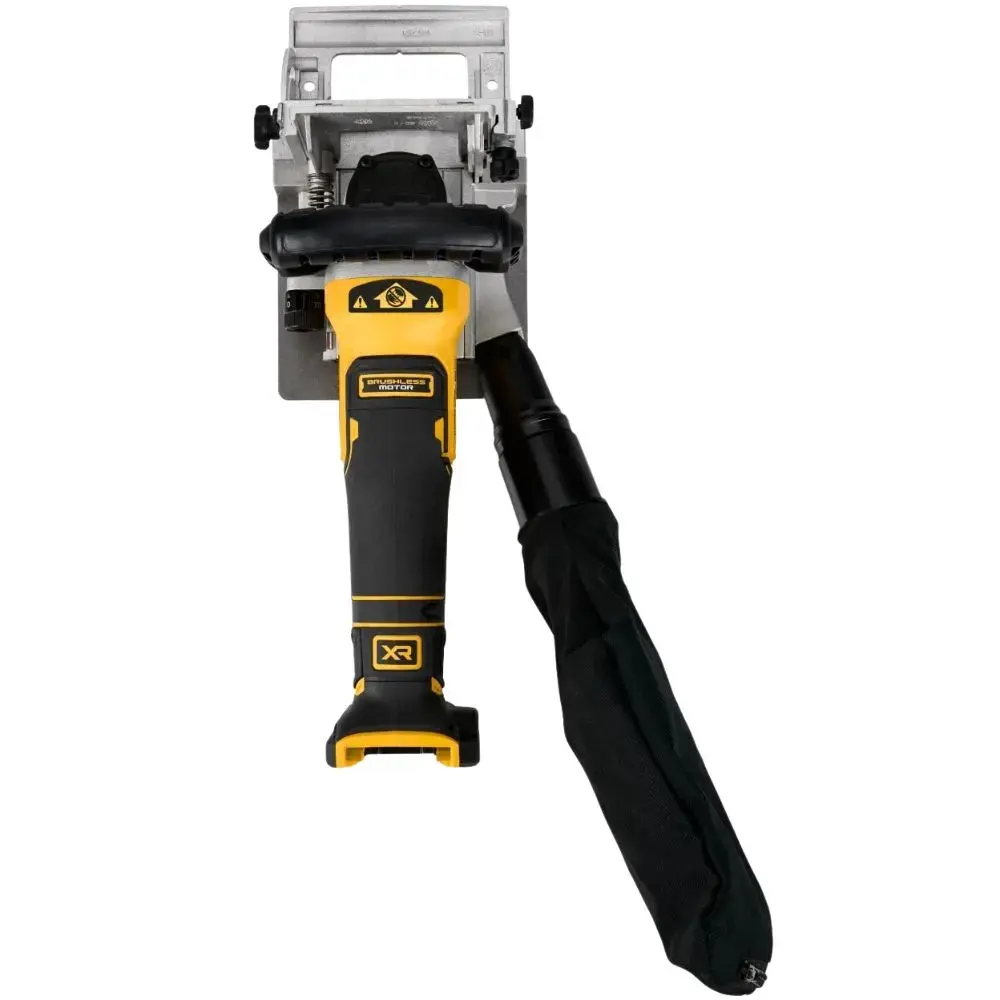

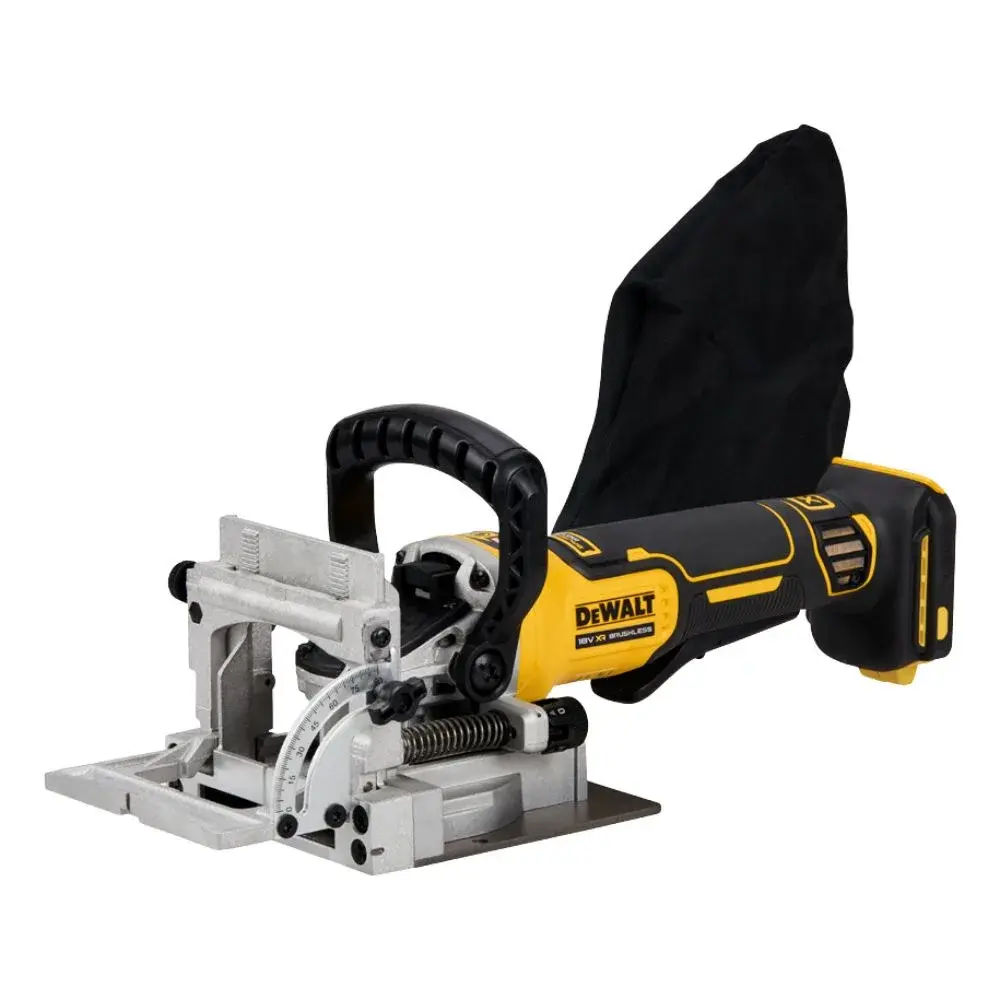

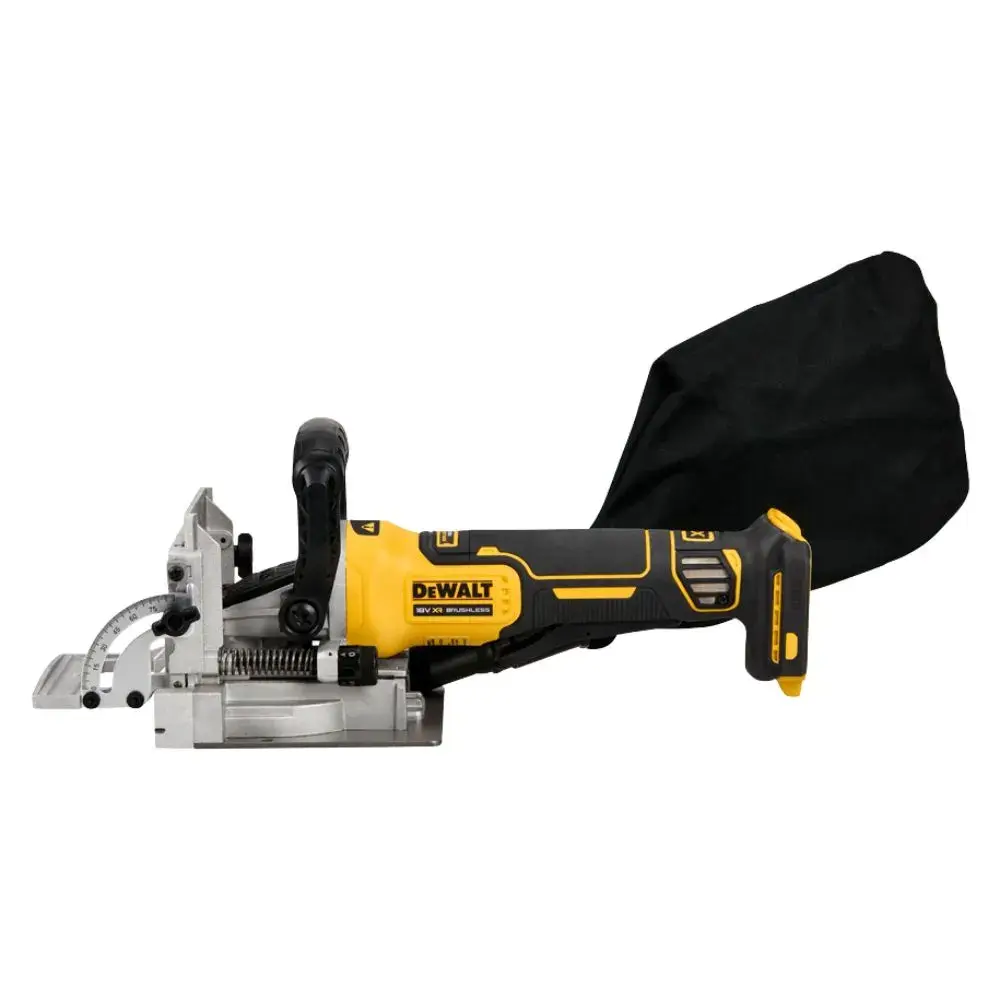

DeWALT DCW682NT 18V XR Brushless Biscuit Jointer with TSTAK Case

Cordless biscuit jointer for accurate, strong woodworking joints

DeWALT DCW682NT is an 18V XR brushless cordless biscuit jointer designed for cabinetmaking, furniture assembly and professional woodworking. It cuts precise slots for biscuit joints, helping align panels and bring timber components together neatly without the restriction of a power cable.

Key Benefits

Brushless motor for efficient cutting: The brushless motor delivers consistent performance for joining work in the workshop or on site, while making efficient use of your 18V XR battery.

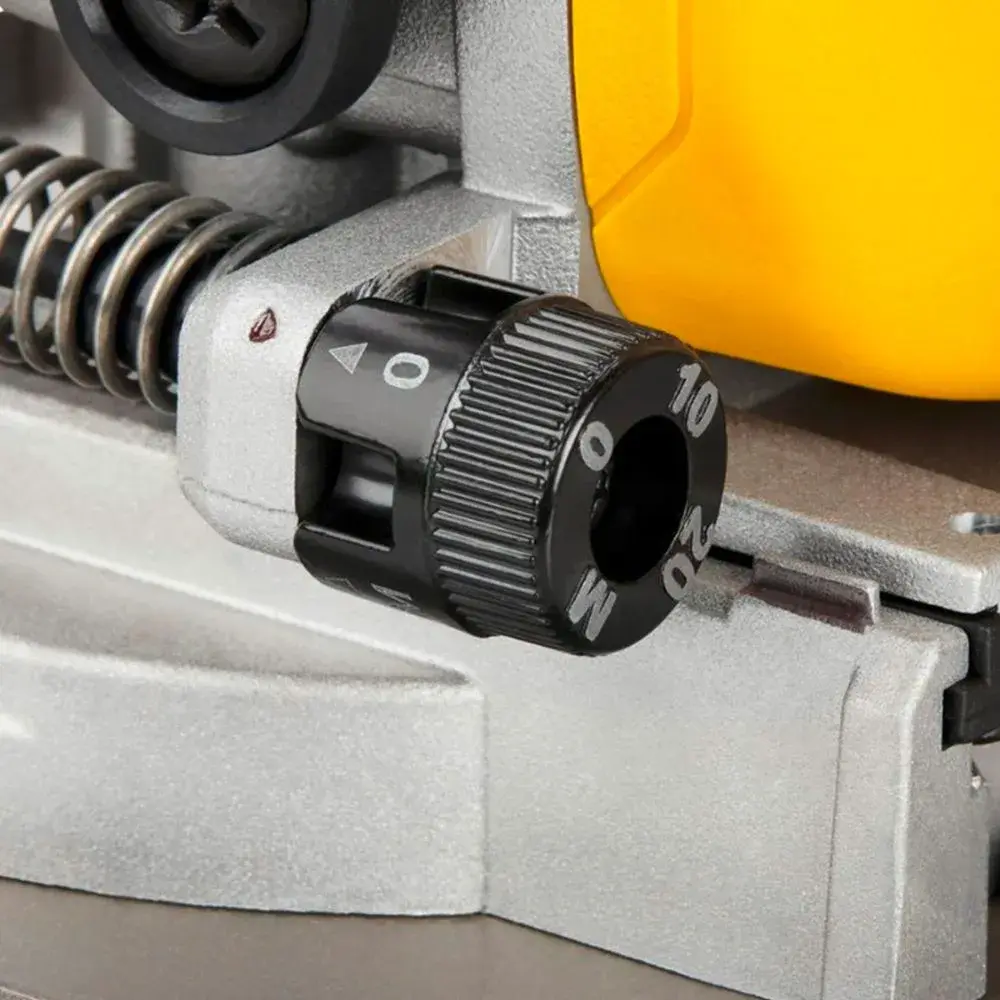

Preset cutting depths for common biscuit sizes: Select the settings for No. 0, No. 10 and No. 20 biscuits, with additional fine adjustment to help achieve a precise fit. The maximum cutting depth is 20 mm.

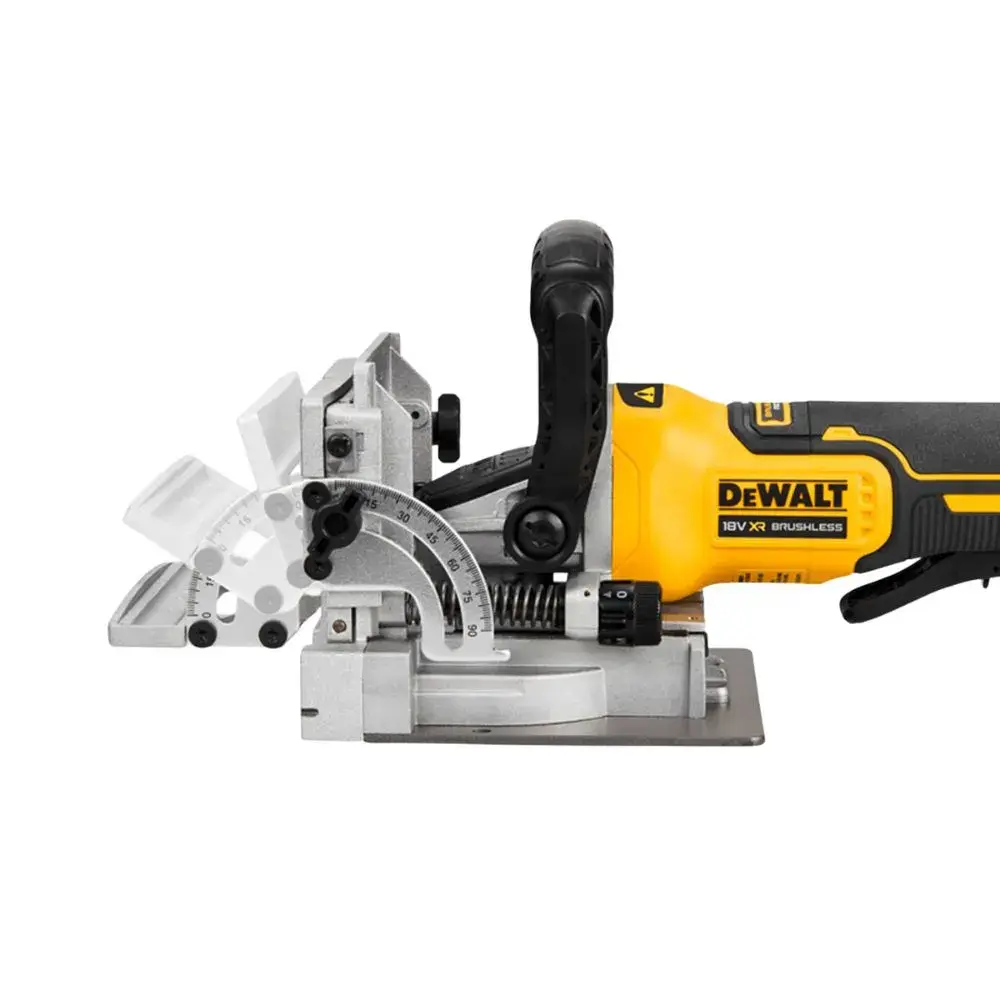

Accurate fence adjustment: The dual rack-and-pinion fence system allows precise height adjustment and alignment. The bevel fence adjusts from 0° to 90°, helping you work with different joint positions and angled components.

Stable positioning: Retractable anti-slip pins help hold the workpiece in position, while the guiding notches and fence window support accurate slot placement. That means less guesswork when lining up panels and assembling furniture.

Quick cutter changes: The spindle-lock mechanism allows the cutter to be changed using a single spanner, keeping setup straightforward when maintenance or a blade change is needed.

Dust collection options: Use the supplied dust bag for convenient collection, or connect a compatible extractor using the dust extraction adapter to help keep the work area cleaner.

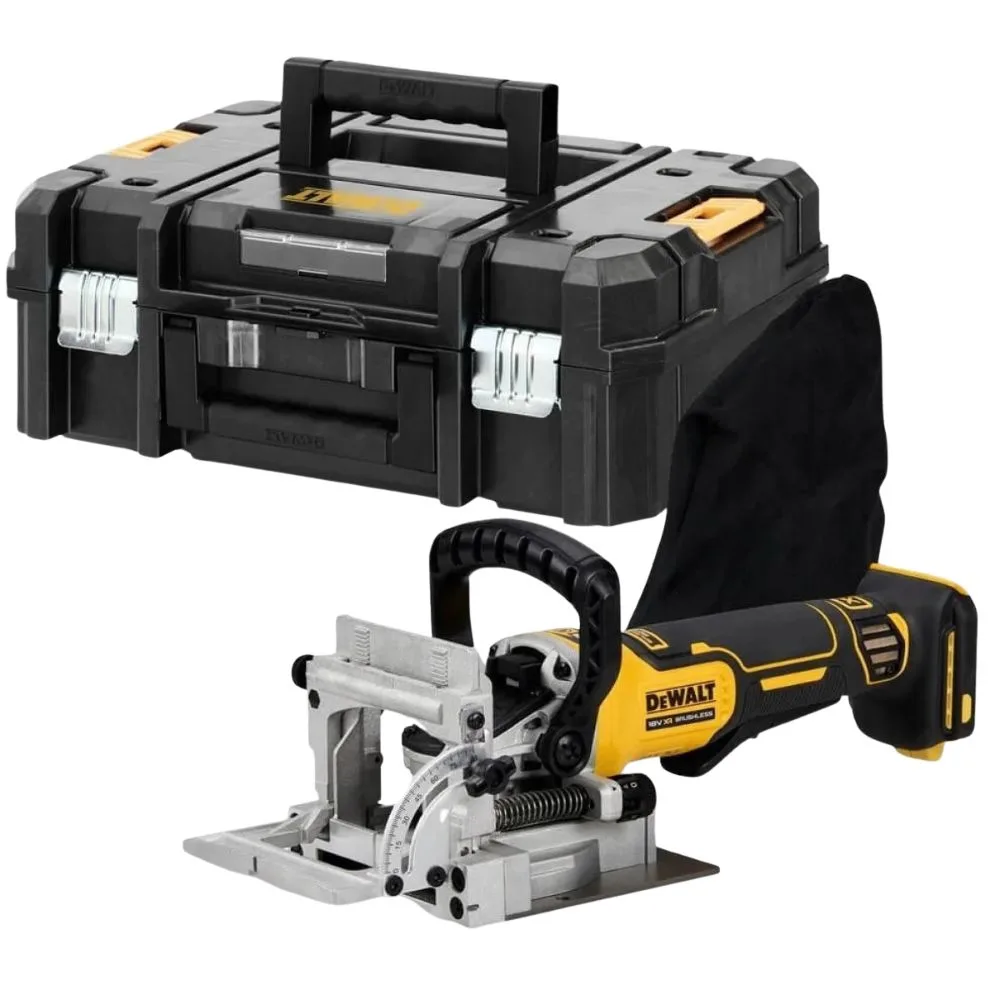

TSTAK case included: The DCW682NT comes in a TSTAK-compatible tool case, making storage and transport easier alongside other compatible DeWALT tools.

Technical Specifications

• Brand: DeWALT

• Model: DCW682NT

• Tool type: Cordless biscuit jointer

• Voltage: 18V XR

• Motor: Brushless

• No-load speed: 10,000 rpm

• Cutter diameter: 102 mm

• Cutter width: 4 mm

• Maximum cutting depth: 20 mm

• Preset biscuit sizes: No. 0, No. 10 and No. 20

• Bevel fence adjustment: 0°–90°

• Dimensions: Approximately 330 × 160 × 130 mm

• Tool weight: Approximately 2.5 kg, excluding battery

Package Contents

• 1 × DeWALT DCW682NT 18V XR brushless biscuit jointer

• 1 × Tungsten carbide-tipped grooving cutter

• 1 × Dust bag

• 1 × Dust extraction adapter

• 1 × Pin spanner

• 1 × T20 Torx key

• 1 × TSTAK-compatible tool case

Battery and charger are not included.

Battery Compatibility

Part of the DeWALT 18V XR cordless platform, the DCW682NT works with compatible DeWALT 18V XR batteries. If you already use tools from this range, you can use your existing compatible battery and charger, making it easier to expand your woodworking setup without investing in another battery system.
