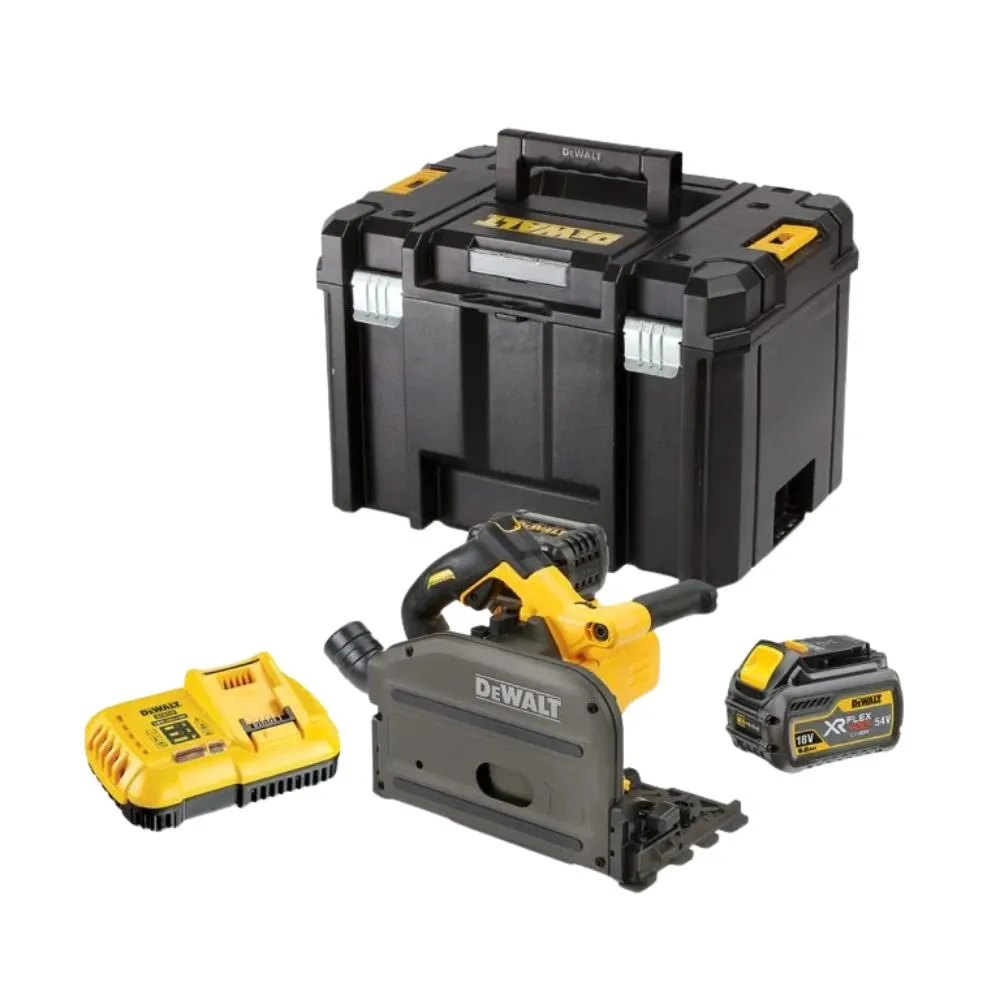

DeWALT DCS520T2 54V XR FLEXVOLT Brushless 165mm Plunge Saw Kit – 2 × 6.0Ah Batteries, Charger & TSTAK VI Case

Precision plunge saw for clean, straight cuts in sheet materials and timber

DeWALT DCS520T2 is a 54V XR FLEXVOLT cordless plunge saw designed for professional carpenters, joiners and installers who need accurate, clean cuts without relying on mains power. Its 165mm blade, variable-speed control and guide-rail compatibility make it well suited to cutting worktops, plywood, MDF, doors and other sheet materials.

Supplied with two 6.0Ah FLEXVOLT batteries, a multi-voltage charger and a TSTAK VI heavy-duty case, this kit provides a powerful cordless cutting solution for the workshop or jobsite.

Key Benefits

54V brushless motor: Delivers power equivalent to approximately 1,450W, providing strong cutting performance while helping maximise battery runtime. The brushless design is built for durability and regular professional use.

Precise plunge cutting: Lower the blade into the material at the required position to create internal cut-outs without starting from an edge. This is particularly useful when fitting worktops, trimming panels and cutting openings in sheet materials.

165mm blade with variable speed: The saw operates between 2,500 and 4,200 rpm, allowing you to adjust the speed to suit the material and application. The supplied 42-tooth TCT blade is designed to produce a fine finish with reduced breakout in laminated materials.

Guide-rail compatibility: Adjust the saw to run accurately along compatible DeWALT guide rails for straight, repeatable cuts. The rail system is useful when sizing large panels or trimming doors where a clean, consistent edge matters.

Anti-kickback function: Helps prevent the saw from travelling backwards along the guide rail and reduces the risk of the tool climbing out of the workpiece during plunge cuts.

Parallel plunge mechanism: Helps maintain a consistent hand position throughout the cut, supporting comfortable, controlled operation.

Adjustable bevel cutting: Set the bevel angle up to 47° for angled cuts and joinery applications. The adjustable cutting depth also makes it easier to set up for different material thicknesses.

Wireless Tool Control: Connect the saw wirelessly to a compatible DeWALT dust extractor with Wireless Tool Control, allowing the extractor to start automatically when the tool is activated.

Effective dust extraction: The enclosed blade guard is designed to support efficient dust collection, while the extraction port allows connection to a compatible extractor using the DeWALT AIRLOCK system.

Two 6.0Ah FLEXVOLT batteries: Keep a spare battery ready while the other pack charges. The supplied batteries provide the flexibility to work away from mains power, with runtime depending on the material and cutting conditions.

Technical Specifications

• Brand: DeWALT

• Model: DCS520T2

• Tool type: Cordless plunge saw / track saw

• Battery platform: 54V XR FLEXVOLT

• Motor: Brushless

• Power output: 1,450W

• Blade diameter: 165mm

• Blade bore: 20mm

• No-load speed: 2,500–4,200 rpm

• Maximum cutting depth at 90° without guide rail: 59mm

• Maximum cutting depth at 90° with guide rail: 55mm

• Maximum cutting depth at 45° without guide rail: 44mm

• Maximum cutting depth at 45° with guide rail: 40mm

• Maximum bevel angle: 47°

• Wireless Tool Control: Yes

• Dust extraction: AIRLOCK compatible

• Tool length: Approximately 303mm

• Tool height: Approximately 265mm

• Weight without battery: Approximately 4.7kg

Package Contents

• 1 × DeWALT DCS520 54V XR FLEXVOLT brushless plunge saw

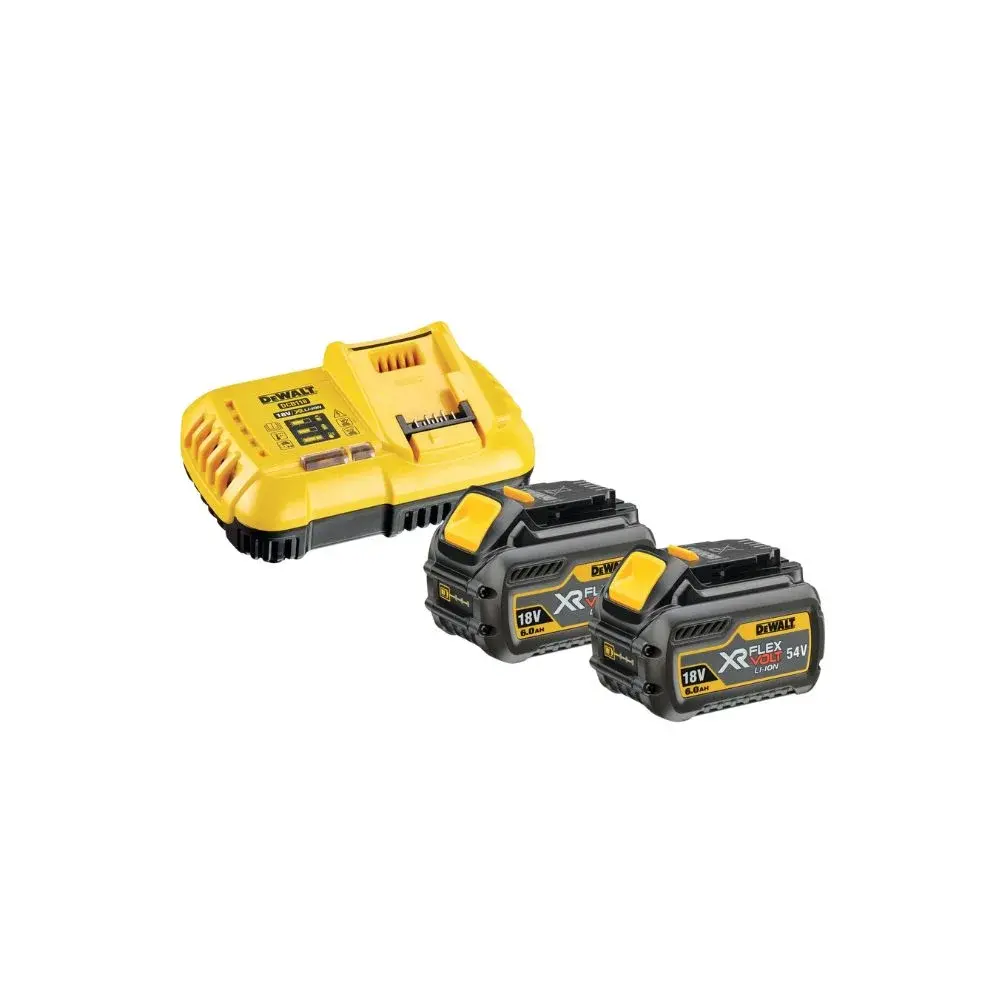

• 2 × DeWALT DCB546 XR FLEXVOLT 6.0Ah batteries with charge indicators

• 1 × DeWALT DCB118 multi-voltage charger

• 1 × 165mm 42-tooth TCT saw blade

• 1 × Blade wrench

• 1 × Dust extraction port

• 1 × DeWALT TSTAK VI heavy-duty case

Please note: A guide rail is not included in this kit and must be purchased separately.

Battery Compatibility

The DCS520T2 uses DeWALT's 54V XR FLEXVOLT battery platform. The supplied batteries are rated at 6.0Ah at 18V and 2.0Ah at 54V, and automatically adapt to compatible DeWALT 18V XR and 54V XR FLEXVOLT tools.

With two batteries, a charger and a TSTAK VI case included, this kit is a practical choice for professionals who need accurate cordless plunge cutting and already use, or plan to expand into, the DeWALT XR FLEXVOLT system.
